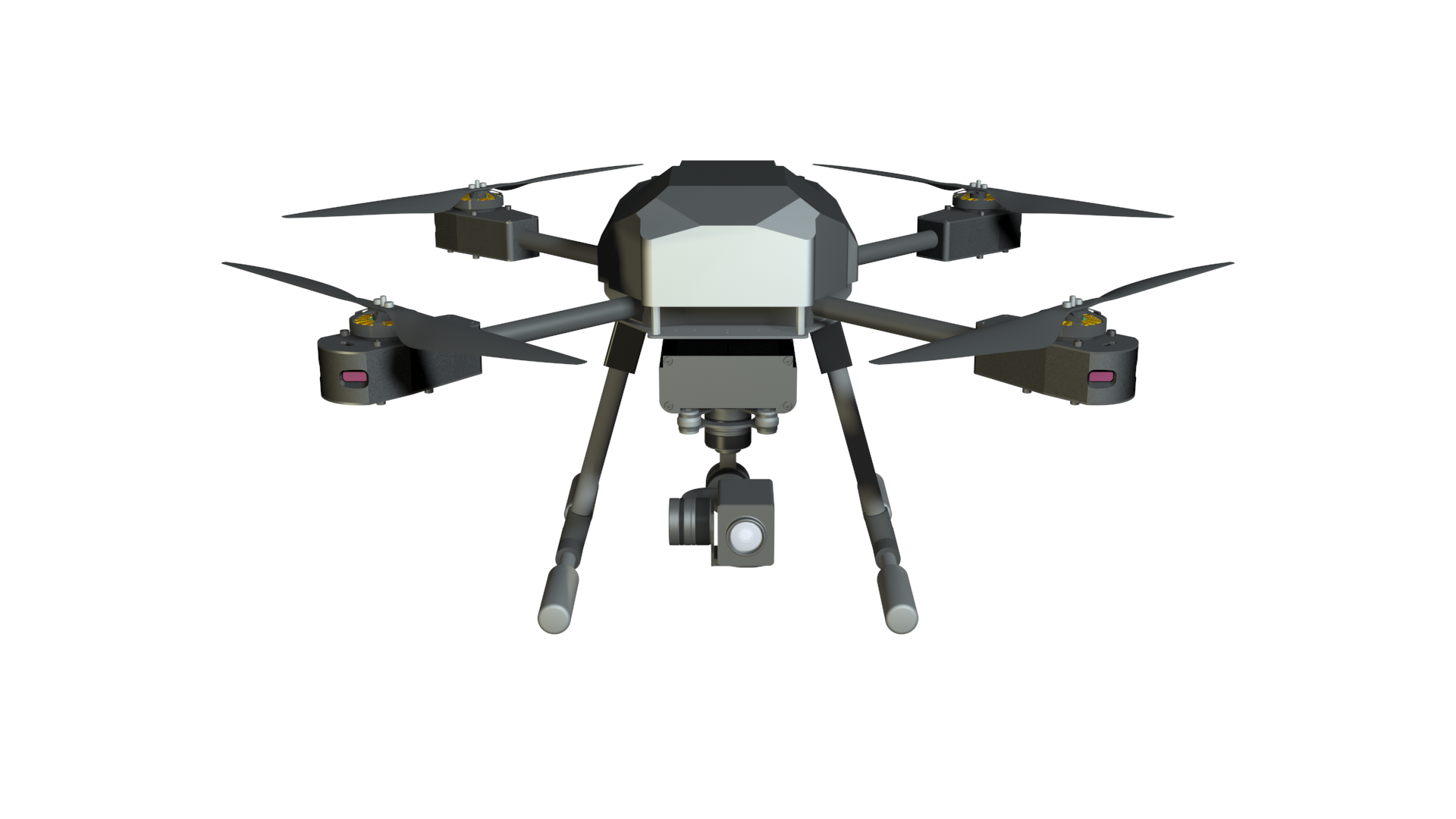

Garuda Robotics M400 UAV

Powerful and Reliable Industrial-Grade Flight Platform

The Garuda Robotics M400 UAV is a general-purpose, industrial-grade four-rotor Unmanned Aerial Vehicle platform designed for industrial inspections.

The M400 UAV is equipped with both optical-zoom visual inspection and thermographic inspection capabilities. It is fully managed and easily operated with Garuda Plex mobile and web app for seamless mission planning, flight operations and data management.

Unleash the power of modern Unmanned Aerial Vehicles for your business.

Garuda Robotics M400 UAV

Powerful and Reliable Industrial-Grade Flight Platform

The Garuda Robotics M400 UAV is a general-purpose, industrial-grade four-rotor Unmanned Aerial Vehicle platform designed for industrial inspections.

The M400 UAV is equipped with both optical-zoom visual inspection and thermographic inspection capabilities. It is fully managed and easily operated with Garuda Plex mobile and web app for seamless mission planning, flight operations and data management.

Unleash the power of modern Unmanned Aerial Vehicles for your business.

Robust  •  Mobile  •  Reliable

Compatible Payloads:

  • ClearCam Z10HD
  • ClearCam Thermal
  • ClearCam Z18HD
  • ClearCam Z30HD

Garuda Robotics M400 UAV

Powerful and Reliable Industrial-Grade Flight Platform

The Garuda Robotics M400 UAV is a general-purpose, industrial-grade four-rotor Unmanned Aerial Vehicle platform designed for industrial inspections.

The M400 UAV is equipped with both optical-zoom visual inspection and thermographic inspection capabilities. It is fully managed and easily operated with Garuda Plex mobile and web app for seamless mission planning, flight operations and data management.

Unleash the power of modern Unmanned Aerial Vehicles for your business.

Robust  •  Mobile  •  Reliable

Compatible Payloads:

  • ClearCam Z10HD
  • ClearCam Thermal
  • ClearCam Z18HD
  • ClearCam Z30HD

M400 UAV Specifications

Frame & Propulsion
Flight endurance: Up to 28min
Wind resistance: Up to 12m/s
Max. speed: 20m/s (72km/h) (software locked)
Base weight: 2.6kg
Max. takeoff weight: 3.8kg
Construction: Carbon fiber and G10 fiberglass
Propeller type: Foldable
Landing gear: Retractable
Payload mount: Quick release, multiple payloads
Dimensions
19.8 x 19.8 x 11.0 inch / 501 x 501 x 279 mm (folded)
31.9 x 31.9 x 11.0 inch / 809 x 809 x 279 mm (unfolded)
19.8 x 19.8 x 12.6 inch / 501 x 501 x 319 mm (LTE-variant, folded)
31.9 x 31.9 x 12.6 inch / 809 x 809 x 319 mm (LTE-variant, unfolded)
Battery
Capacity: 5200mAh
Type: Lithium Polymer 6S
Voltage: 22.2V
Safety cage: Carbon-fibre reinforced plastic
Communications
Radio control link: 2.4GHz ACCST with smart telemetry
Radio control link range: 2km LOS
Telemetry link: 433MHz
Telemetry link range: 2km LOS
Video link: 5.8GHz
Link channel selection: Automatic
Add-ons available: 4G LTE module
Transportation
Single carrying case
Safety features Automated return home
Single-switch return to land
Geofencing
Operator modes
First-person-view (FPV) mode
Dual-operator mode
Software
1. Plex Pilot (Ground control system, now available on Google Play Store)
– Waypoint-based autonomous operation
– Mobile mission planning
– Automated flight logging
2. Garuda Plex Fleet Management
– Web-based mission planning
– Deployment planning
– Equipment management
– Drone team management
– Integration for CAAS permit application

Payload Capability Showcase

ClearCam Z10HD

10x optical zoom RGB camera payload with an integrated 3-axis gimbal

ClearCam Thermal

Compact thermographic camera payload with an integrated 3-axis gimbal.
